Our very popular WigWag Module is a highly versatile add-on for your plane that is simple to install. We give ten! different examples of how it can be switched and wired, however there's one (ok two...) configurations that it can't do.

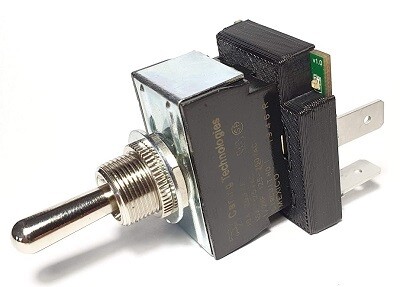

The new Flyleds WigWag Switch is a three position switch with what is effectively a Flyleds Wigwag module mounted to its back (so you only need to buy EITHER the Wigwag Module OR the Wigwag Switch, not both!).

It can operate your landing lights in one of two ways:
OFF - ON - WIGWAG, or if you prefer, OFF - WIGWAG - ON.

We like the first mode, with the thinking that when you're up, you want the lights wigwagging, and when you're heading down, you want the lights full on, kind of like gear up/gear down...

We can also appreciate that you might prefer the lights to be half on in the mid position, and full on in the up position.
Either way works, and it only takes three seconds to change until you've made up your mind!

Just like our WigWag Module, it can be easily set for one of eight different flash patterns with the press of a button.

Super simple to install, just needing 12 volts power in, two connections out to your landing lights, and a low current local ground connection for the module.
The Wigwag Switch is rated for two 10 amp loads at 12 volts (only). It will happily flash just one light as well.

If your toggle switches are spaced an inch or more apart on your panel you shouldn't have any clearance issues. Neighboring single pole switches and breakers are narrower and would only need 7/8" spacing or less, depending on the switch.
The installation manual is available here.

Having your lights on and flashing for each and every flight you make, day or night, is the key to being seen coming from miles away.
