You want to be seen coming by both human and feathered pilots, right?

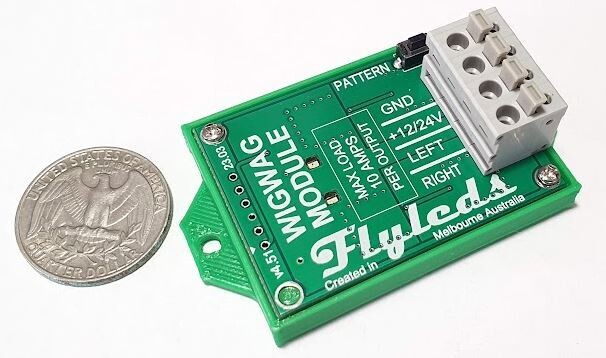

With only four connections to make, the tiny Flyleds WigWag Module is easily fitted into your existing panel wiring on any aircraft.

"My son called in on the radio ten miles out. From the hangar I could see his lights flashing well before I could see the plane!" Steve B., and many other customers have given us the same feedback.

There are multiple ways to configure and operate the unit:

• Use a separate 'WigWag' switch in addition to your existing 'Landing Lights' switch
• Add a third 'WigWag' switch to your existing Landing and Taxi switch setup
• Use an ON-OFF-ON switch to select between WigWag and Landing lights
• And unique to Flyleds, you can also configure the Module to control your lights with your existing standard ON-OFF switch!

• Turn the light switch on, both lights will come on as usual.
• Give the switch a "quick flick" OFF and back ON again and the lights will begin to wigwag.
• Turn the switch off and back on again after one second returns both lights to steady on ready for landing.
• No need to replace your existing hard to find or expensive panel switch!
• The module can also be set to start up in wigwag mode first, with the 'quick flick' changing to landing mode.


There are eight different flash patterns to choose from, easily set with a single push button.

The Wigwag Module is rated to flash 12 or 24 volt lights.

The Wigwag Module will switch two 10 amp loads, and is ideally matched to any of our LED landing light products. It will happily flash a single light as well.
It will also work with your old school halogen lights, but seriously, now is the time to toss them out, upgrade to some Flyleds lights and stop being so scared of night landings!
It will work with HID lamps, but we do not recommend or endorse doing so. These lights and their power modules were not designed to be restarted every other second.

The module only weighs 16 grams / half an ounce and can be zip-tied out of the way just about anywhere!

The user manual is available here.

Even with all of the circuit diagrams given above, there is one switch configuration that the Wigwag Module can't do: OFF-WIGWAG-ON for two lights on a single three position (progressive, or off-on-on) switch. For that you need to choose our alternative product the WigWag Switch instead:

(Click the picture for more detail)

Having your lights on and flashing for each and every flight you make, day or night, is the key to being seen coming from miles away.
