Thinking about installing an Advanced Flight Systems AF-5000 series or Dynon Skyview EFIS system in your plane?

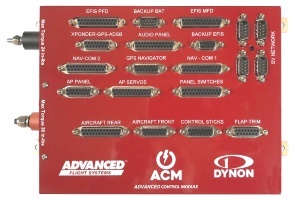

As part of their Advanced Panels AFS supply the Advanced Control Module (ACM) as the center of the system, making their panels a 'plug-and-play' installation (YouTube video here).

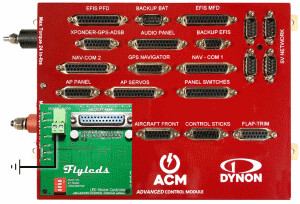

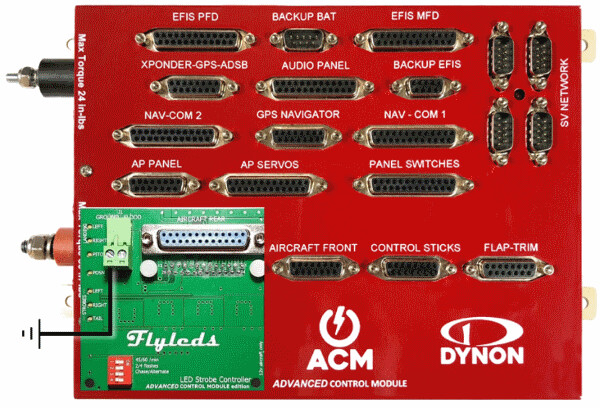

The Flyleds ACM controller board builds on this theme. It simply plugs in between the ACM Aircraft Rear socket and the fuselage wiring harness, re-configuring a few wires to suit our strobe LEDs and passing through all other connector functions unchanged.
One additional connection to a nearby ground point is all that is required to install the controller board, which should take minutes to do.

This controller board can be ordered in conjunction with our The Essentials or The Works position and strobe light kits and it substitutes for the Flyleds controller board normally supplied in that kit.

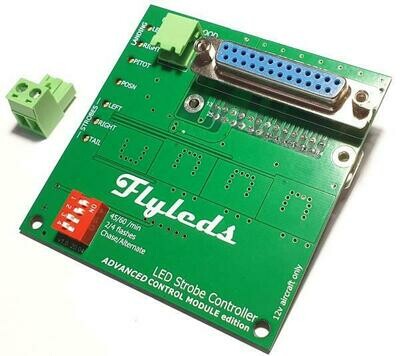

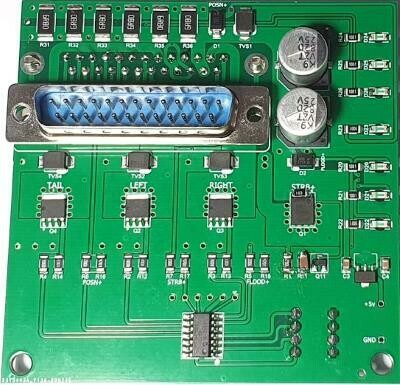

It is supplied fully assembled and ready to plug in, no soldering required!
Our installation guide is available to read here.

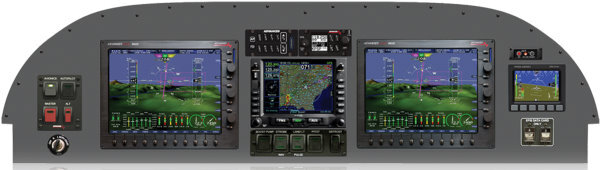

*(ACM and the rather nice looking panel not included!)
